1. We have a rubber/PU laboratory and a ceramic laboratory to test and analyze the properties of rubber and ceramic elements, the peeling strength, etc. These tests help us ensuring the quality and consistency.

2. Special rubber compound delivers good wear resistance, high tensile strength and elongation at break. Such properties help absorbing the impact energy as well as holding the ceramic tiles tightly. Inferior rubber matrix may lead to ceramic tiles falling off.

3. Branded adhesive is used to make sure the peeling strength between ceramic and rubber, rubber and steel.

4. We have accumulated extensive experience in production of rubber ceramic wear plate.

5. We are able to produce rubber ceramic wear plate of different layout.

6. Strict QC/QA to ensure the quality and consistency. Quality control is carried out during the whole production process, from raw material procurement, to in-process production, to final products.

7. Also we are able to do a lot of things to make your work easy.

Ceramic wear plate with lifting lugs for easy handling.

Put part number on the top and bottom for easy identification.

Unique plugs are supplied for ceramic wear plate with countersink.

Hebei Huping -Ceramic Pulley Lagging

Ceramic area and total length can be made as request. High alumina ceramic tile with 95% Al2O3.
With CN bonding layer, which ensures fast and excellent bonding strenth between lagging sheets and pulley.
Chemlok's adhesive painted to ceramic tiles.
High quality rubber, tensile strength 22 MPa, to hold the tiles tightly.

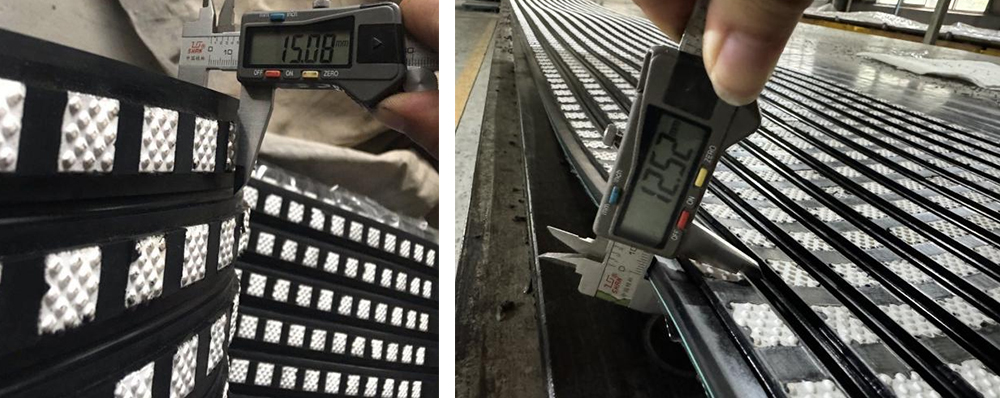

Thickness: 12mm, 15mm, 20mm, 25mm
Width: 500mm
Length: 800mm ~ 60 000 mm
