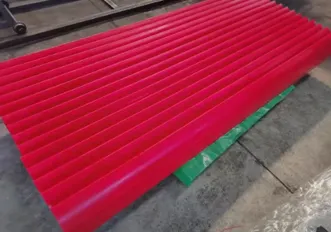

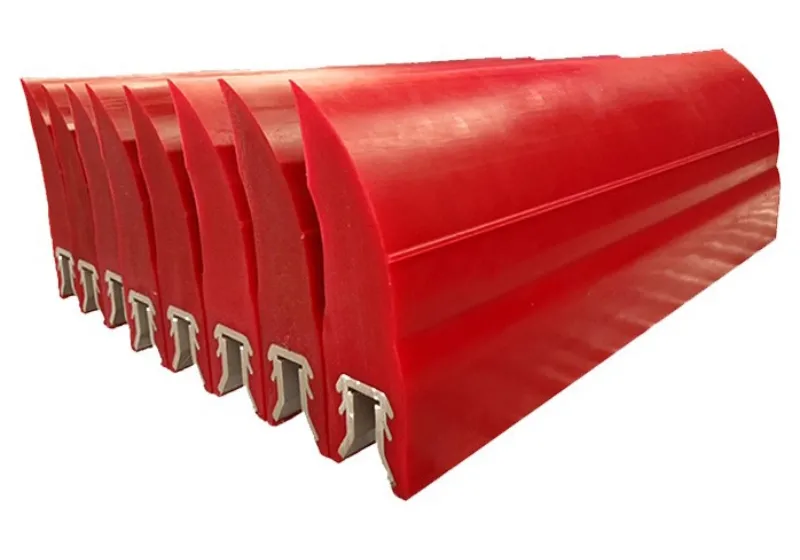

Belt Scraper / Blade

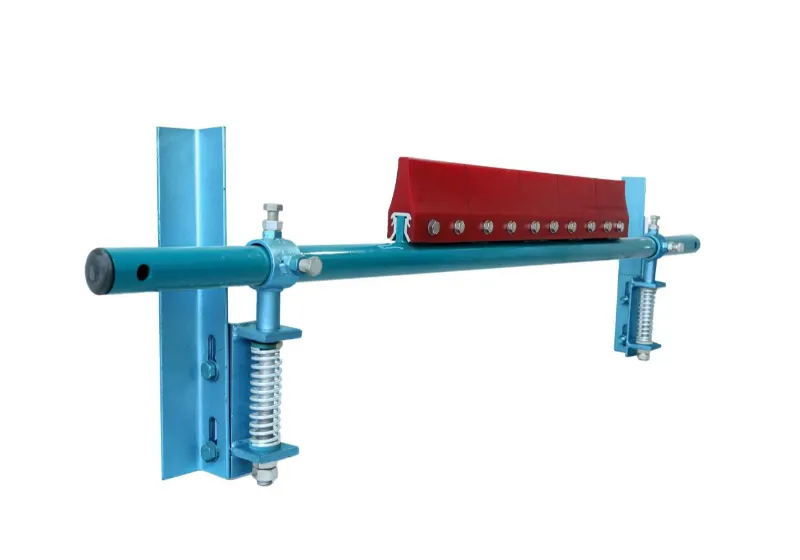

Primary PU Belt Cleaner

Installed on the head pulley to provide effective cleaning. Wear-resistant polyurethane blade doesn't damage the belt and extend belt life. Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps, the scraper will follow up automatically to ensure good contact.

Features: 1. for belts 450-2400mm 2. Replacement urethane blade 3. easy installation 4. low maintenance 5. self-adjusting tensioner 6. extend belt life.

Applications: 1.Belt Width: 450~2400mm; 2.Belt Speed: ≤3.5(m/s) 3.Temperature: -40~80 ℃ 4.Material Humidity: ≤15%

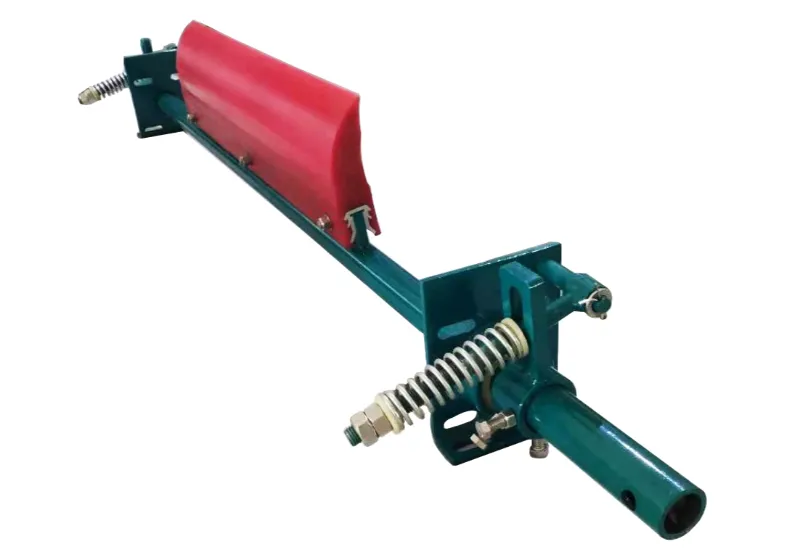

Secondary PU Belt Cleaner

Secondary Polyurethane Belt Cleaner can be mounted in any secondary cleaning position---usually about 100mm from where the belt leaves the head pulley.

The secondary cleaner, used together with the primary cleaner, has a self-adjusting  spring tensioner system to maintain close contact with the belt without damaging the belt and achieve good cleaning results.

Applications: 1.Belt Width: 450~2400mm; 2.Belt Speed: ≤6.5(m/s) 3.Temperature: -40~90 ℃ 4.Material Humidity: ≤15%

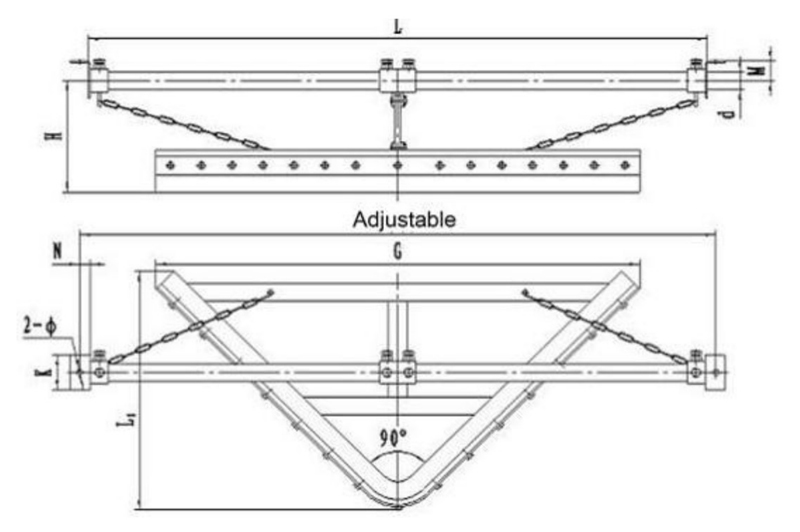

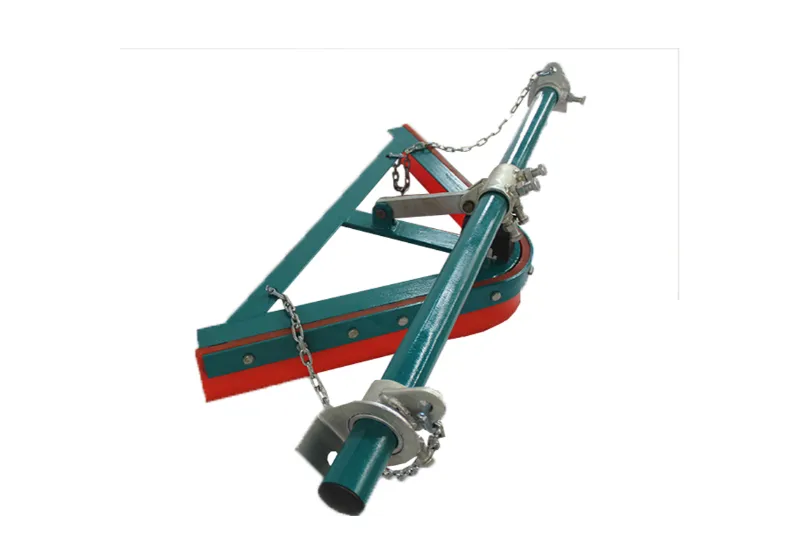

V-Plough Belt Cleaner (Return Belt Cleaner)

V-Plough Belt Cleaner is used to clean the inside of the return belt.

Features: *Special polyurethane blade. *Low friction coefficient. *Anti-corrosion. *Without damaging the belt. *Simple structure. *Easy-to-maintenance .

Applications: 1.Belt Width: 450~2400mm; 2.Belt Speed: ≤6.5(m/s) 3.Temperature: -40~90 ℃ 4.Material Humidity: ≤15%
