Ceramic Pulley Lagging is essential to improve conveyor belt performance. It is specially suited for pulleys where slippage and excessive wear and tear problems make normal rubber lagging ineffective. The alumina ceramic tiles help in proper grip of the belt under wet, muddy or any other such arduous conditions.
Available Sizes:
Thickness: 12mm, 15mm, 20mm, 25mm
Width: 500mm
Length: 800mm ~ 10 000 mm
Product Advantages
Why Choose Hebei Huping Ceramic Lagging?
1 We have our own ceramic plant and rubber plant, quality control is carried out in the whole production process.
2.We have our own ceramic and rubber laboratories to analyze and test the material.
3.Ceramic area and total length can be made as request. High alumina ceramic tile with 95% Al2O3
4. With CN bonding layer, which ensures fast and excellent bonding strenth between lagging sheets and pulley.
5. Chemlok's adhesive painted to ceramic tiles.
6. High quality rubber, tensile strength 22 MPa, to hold the tiles tightly.
Technical Data of Ceramic Lagging
| A.Rubber: | |
| 1.Material: | NR&SBR blend |
| 2.Gravity: | 1.10g/cm³ |
| 3.Tensile Strength: | 22 MPa |
| 4.Hardness: | 63±5 Shore A |
| 5.Elongation: | 500% |
| 6.Abrasion Loss: | 110mm³ |
| 7.Aging Coefficient: | 0.87(70C°x48h) |
| B:Alumina Ceramic Tile: | |
| 1.Material: | Al₂O₃ ≥95% |
| 2.Gravity: | 3.70g/cm³ |
| 3.Color: | White |
| 4.Hardness(Mohs) | 9 |
| C:Bonding Strength: | |
| 1.Rubber and Ceramic: | 21kN/m |
VIDEO
HOT PRODUCTS
CASE PRESENTATION

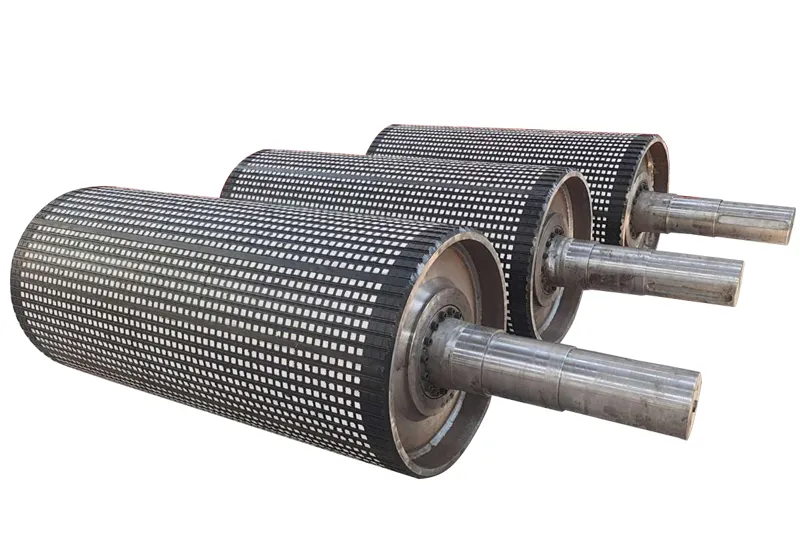

Ceramic lagging in customers'conveyor pulley workshop
We have our own ceramic plant and rubber plant, quality control is carried out in the whole production process. We also have our own ceramic and rubbennr laboratories to analyze and test the material.
