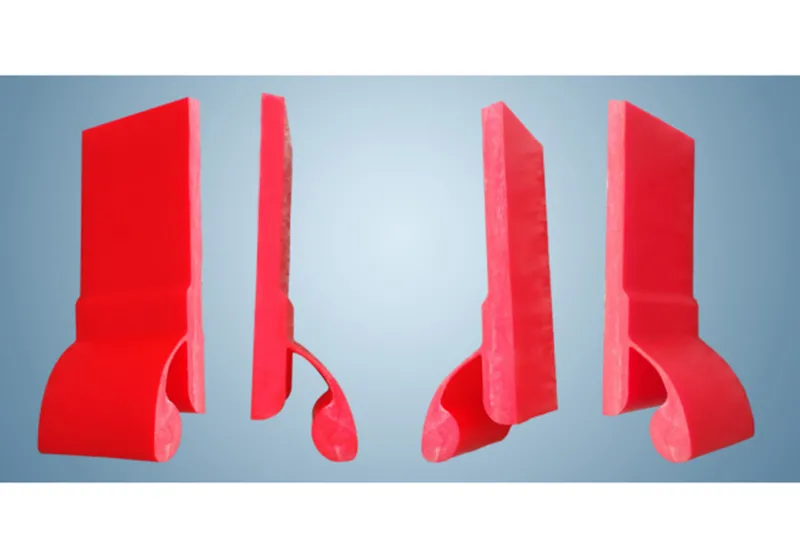

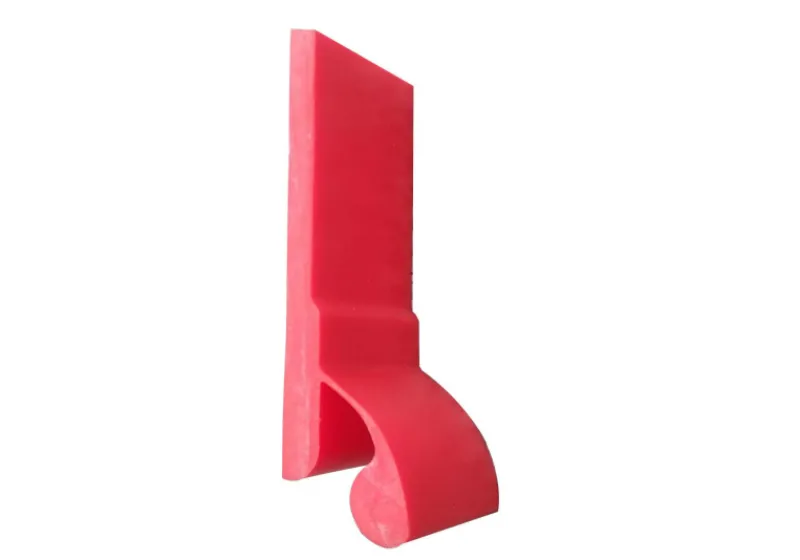

Dual Seal Polyurethane Skirting, the latest R&D conveyor skirting, is an upgraded product for traditional dual seal skirting and other kinds of skirting. It is made of good wear-resistant and low-hardness(63HA) polyurethane, produced by casting the material and forming the final shape at one time, It has more beautiful appearance, better sealing and longer service.
Product Advantages
Features
1. Double-lips structure, better sealing.
2. Cast polyurethane, higher wear resistance than rubber.
3. Longer service life, less maintenance cost.

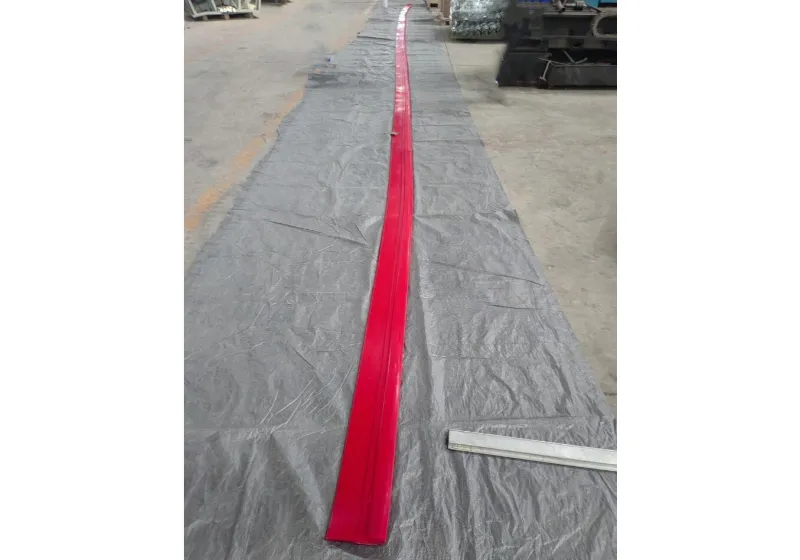

4. 30m roll, less waste
Technical Data
| Description | Unit | Value / Range |
| Color | — | Red, orange, black, green or custom-made |
| Hardness | Shore A | 63 ± 5 |
| Density | g/cm³ | 1.25 |
| Tensile | MPa | 40 |
| Elongation at break | % | 660 |
| Abrasion Loss | mm³ @ 10 N | 40 |
| Angle Tear Strength (DIE C) | kN/m | 57 |
| Trouser Tear Strength (DIE C) | kN/m | 23 |
| Temperature Range | °C | –30 ~ +70 |
| Rebound | % | 43 |
