Conveyor skirting is used to contain material on belt, reduce spillage and suppress dust.
Product Advantages
Features of Polyurethane Skirting:
*Better wear resistance.
*Longer service life, about 5 times longer.
*Less maintenance shutdown.
*Reduce maintenance cost.
*Lower spillage cleanup cost.
*Lower coefficient of friction, no damage to belt.

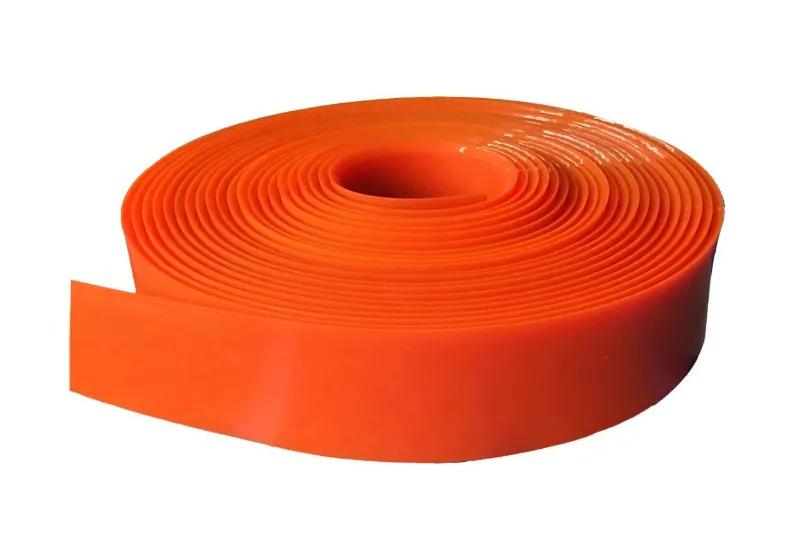

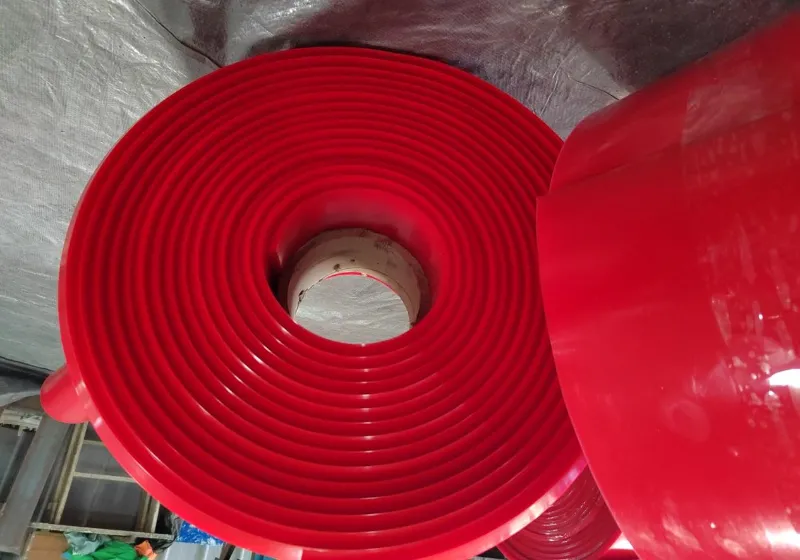

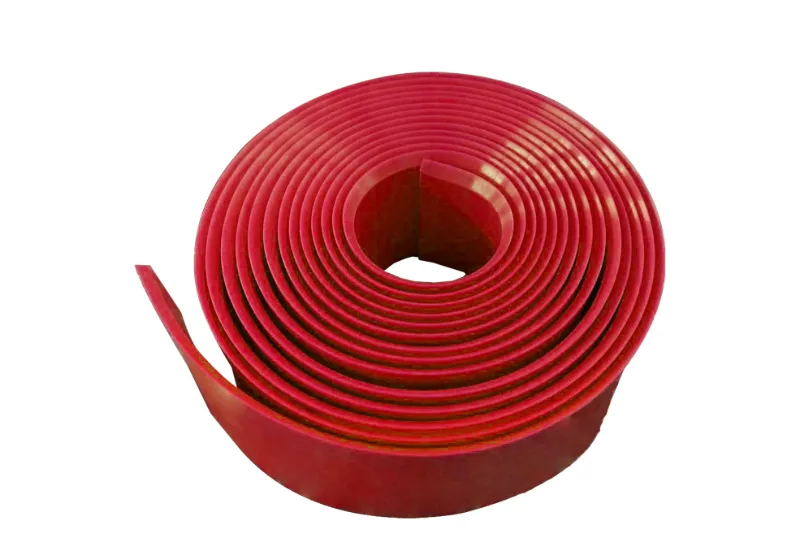

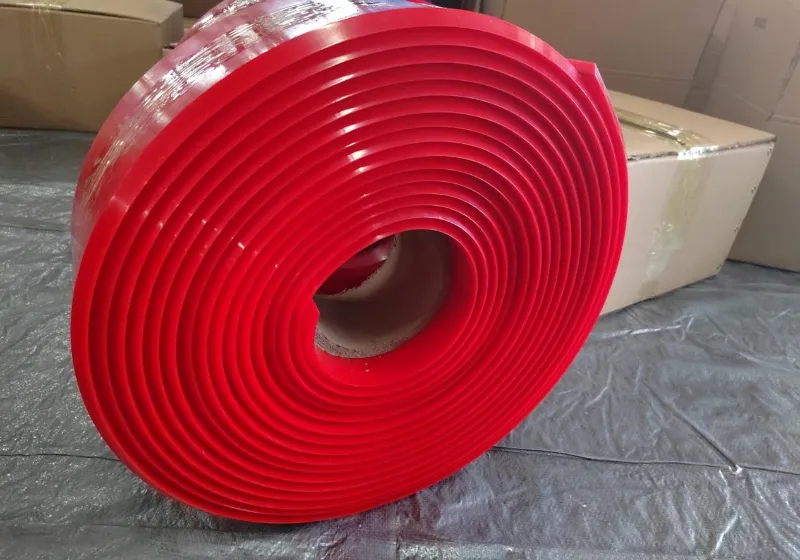

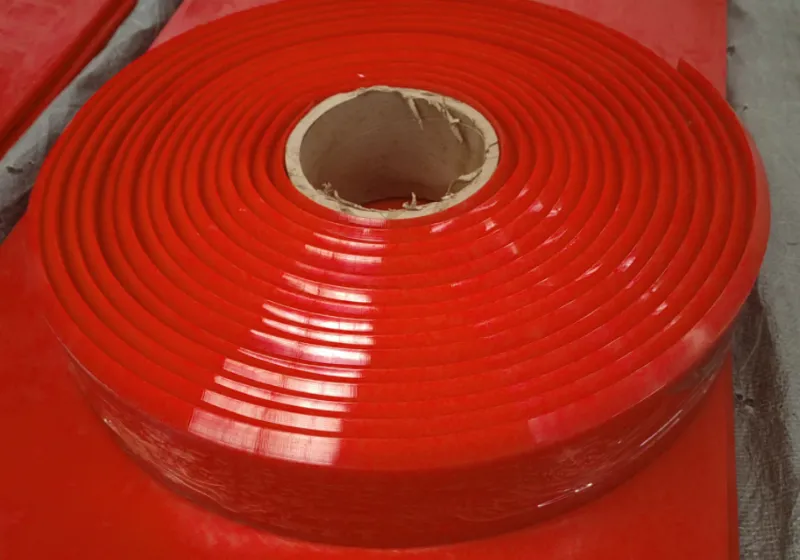

Polyurethane skirting Can be produced with straight edge or bevel edge 45 or 35.
Length with 15m, 30m, 50 m, 100m
Width: From75mm to 1400mm
Thickness: from 8mm to 25.4mm
Hardness: 70±5 or 63±5, 80

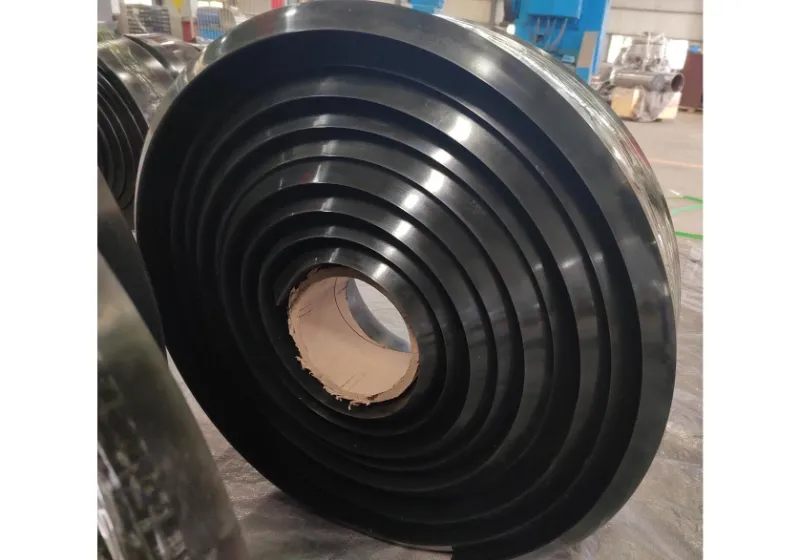

Color: Red, orange, blue, Green, Yellow, Black etc.
| Description | Value |
| Color | Red, Orange, Black, Green, Yellow, Blue |
| Hardness (Shore A) | 63±5, 70±5, 85±5 |
| Density (g/cm³) | 1.25 |
| Tensile Strength (MPa) | 40 |
| Elongation at Break (%) | 660 |
| Abrasion Loss (mm³@10N) | 40 |
| Angle Tear Strength (DIE C) (kN/m) | 57 |
| Trouser Tear Strength (DIE C) (kN/m) | 23 |
| Temperature Range | -30°C to 70°C |
| Rebound (%) | 43 |
