Ceramic rubber liners are produced by rubber or polyurethane, alumina ceramic tiles and steel backing plate through hot vulcanizing process.
Product Advantages
Cushioning rubber or urethane layer prevents ceramic tiles breakage.
-High Alumina Ceramics, 92% or 95% Al2O3
-Available with square, rectangular, cylindrical, hexagonal, etc.
-Thickness, size and shape of ceramic are determined on the basis of application, such as materials handled, lump size, height of fall, etc.
When selecting wear liner, the following information should be taken into consideration:
-Material Type: coal, rocks, gold slurry, iron ore, etc.
-Particle Size
-Drop height
-Sliding wear or impact wear, impact angle

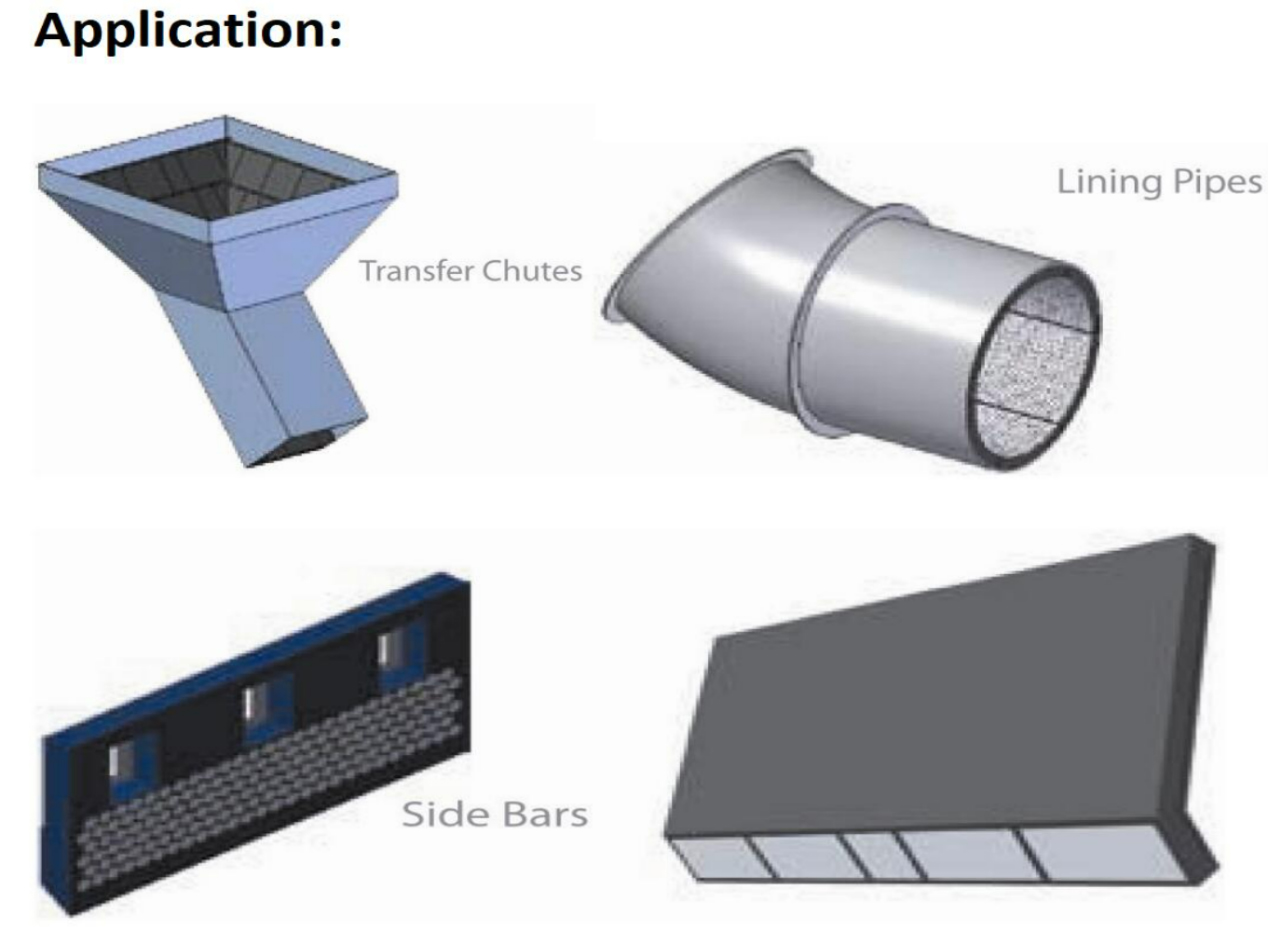

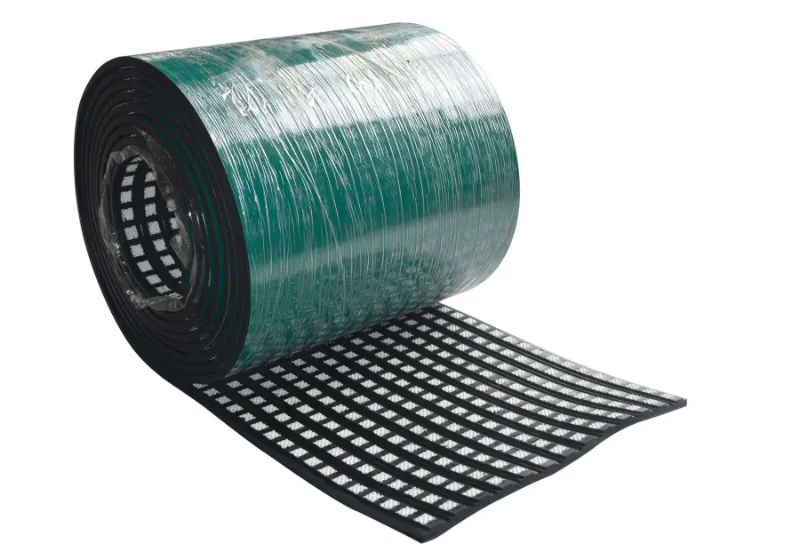

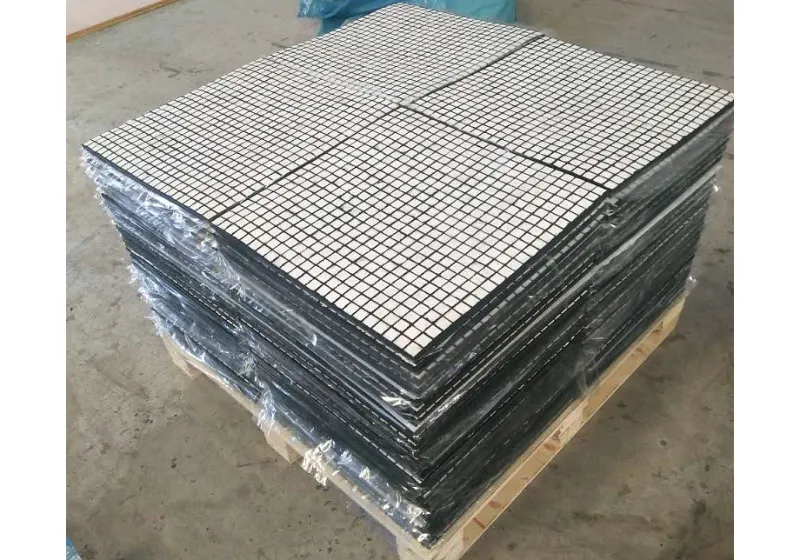

Ceramic Rubber Composite Lining with CN Bonding Layer
Ceramic rubber lining with bonding layer can be bonded to equipment directly by adhesive. Ceramic rubber lining without bonging layer is also available.
| Ceramic Liner Size (mm) | Ceramic Shape* | Structure | Overall Thickness (mm) |

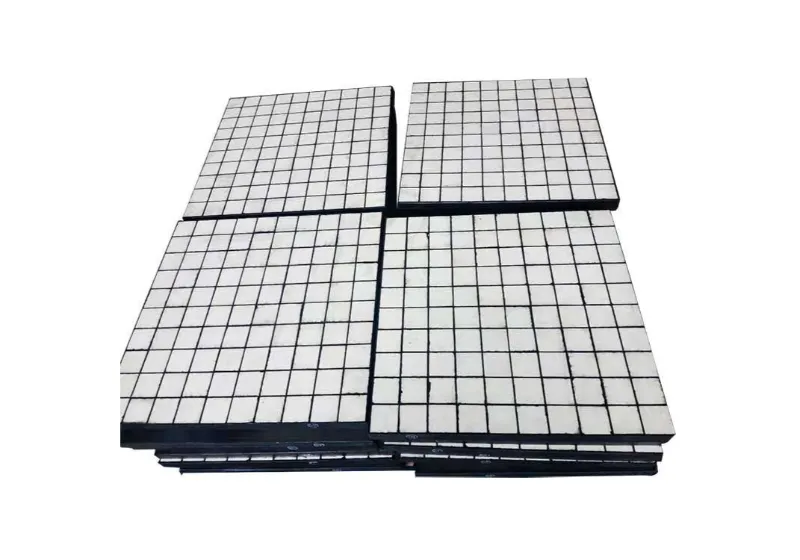

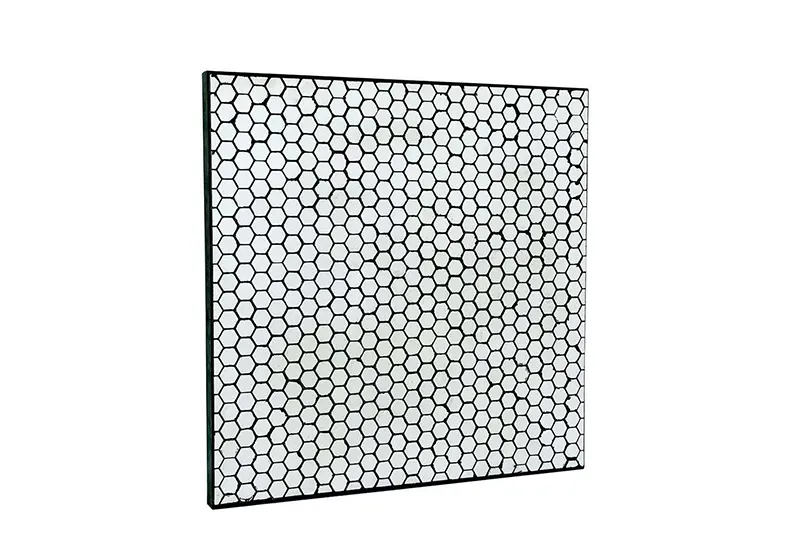

| 500 × 500 × 8 | Square, Cylindrical, Hexagonal | 4 mm ceramic on 4 mm rubber | 8 |
| 500 × 500 × 10 | Square, Cylindrical, Hexagonal | 6 mm ceramic on 4 mm rubber | 10 |
| 500 × 500 × 14 | Square, Cylindrical, Hexagonal | 10 mm ceramic on 4 mm rubber | 14 |
| 500 × 500 × 20 | Square, Cylindrical, Hexagonal | 13 mm ceramic on 7 mm rubber | 20 |
| 500 × 500 × 25 | Cylindrical, Hexagonal | 20 mm ceramic on 5 mm rubber | 25 |
| 500 × 500 × 30 | Cylindrical, Hexagonal | 25 mm ceramic on 5 mm rubber | 30 |
| *Customized sizes and configurations are available on request. | |||

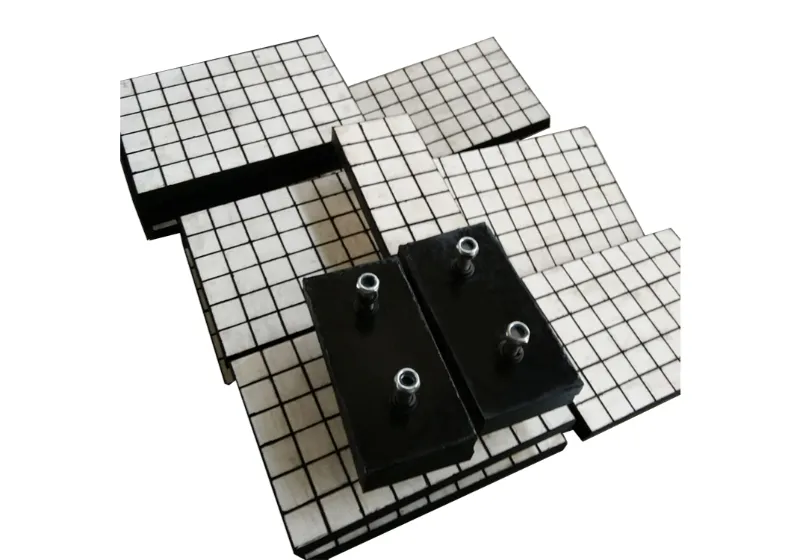

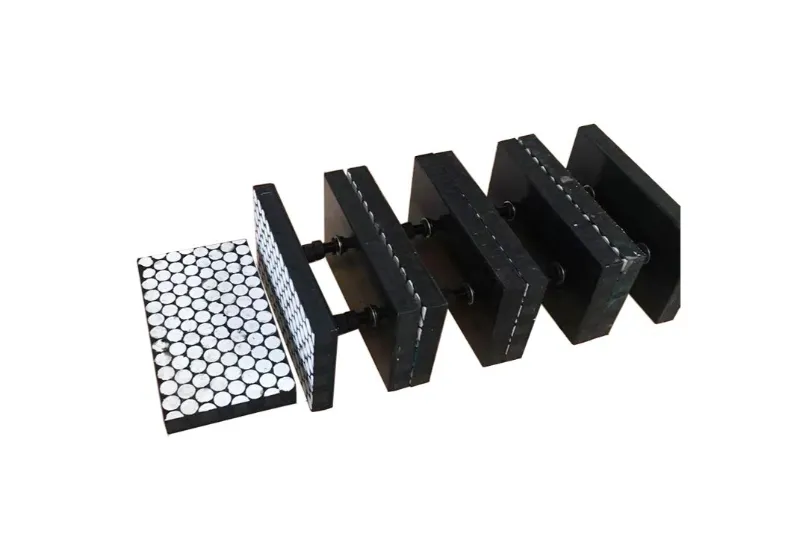

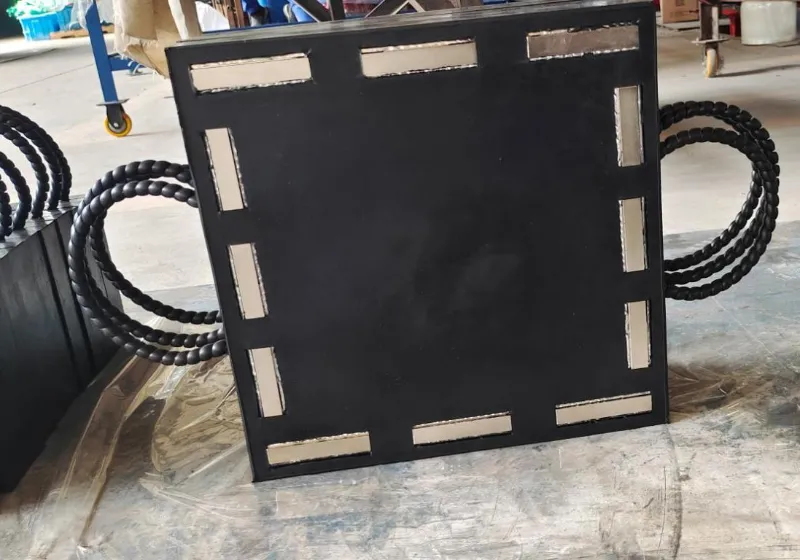

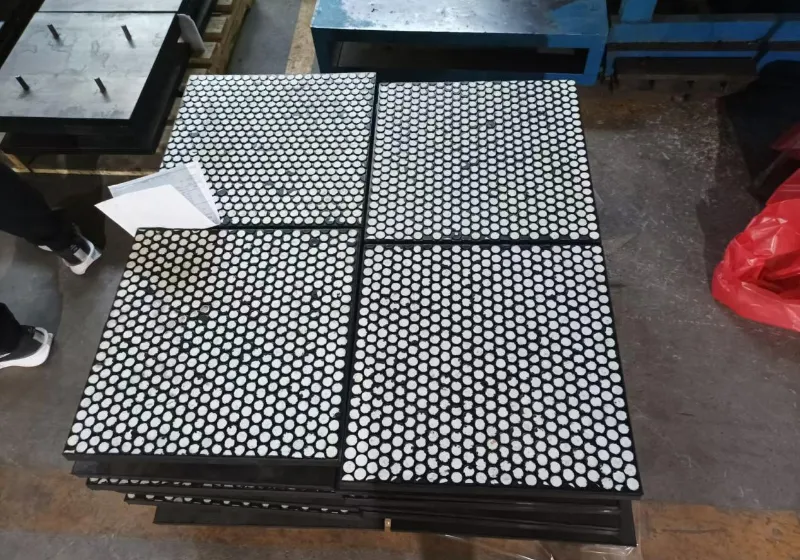

Ceramic Rubber Composite Lining with Steel Backing Plate & Studs
| Overall Thickness (mm) | Size (mm) | Ceramic Type / Shape | Ceramic Thickness (mm) | Rubber Thickness (mm) | Steel Backing Plate (mm) |
| 35 | 300 × 300 × 35 500 × 500 × 35 | Φ21 × 21 ceramic cylinder | 21 | 8 | 6 |
| 35 | 300 × 300 × 35 500 × 500 × 35 | Φ21 × 25 ceramic cylinder | 25 | 5 | 5 |
| 50 | 300 × 300 × 50 500 × 500 × 50 | Φ32 × 32 ceramic cylinder | 32 | 12 | 6 |
| 30 | 500 × 500 × 30 | 48 × 48 × 20 ceramic cube 80 × 30 × 20 ceramic cube | 20 | 5 | 5 |
| 45 | 500 × 500 × 45 | 48 × 48 × 35 ceramic cube 80 × 30 × 35 ceramic cube | 35 | 5 | 5 |
| 50 | 500 × 500 × 50 | 48 × 48 × 38 / 40 ceramic cube 80 × 30 × 38 / 40 ceramic cube | 38 / 40 | 6 / 5 | 6 / 5 |
| *Customized sizes are available. | |||||
VIDEO
HOT PRODUCTS

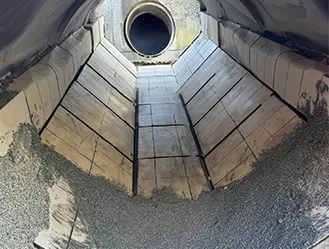

CASE PRESENTATION

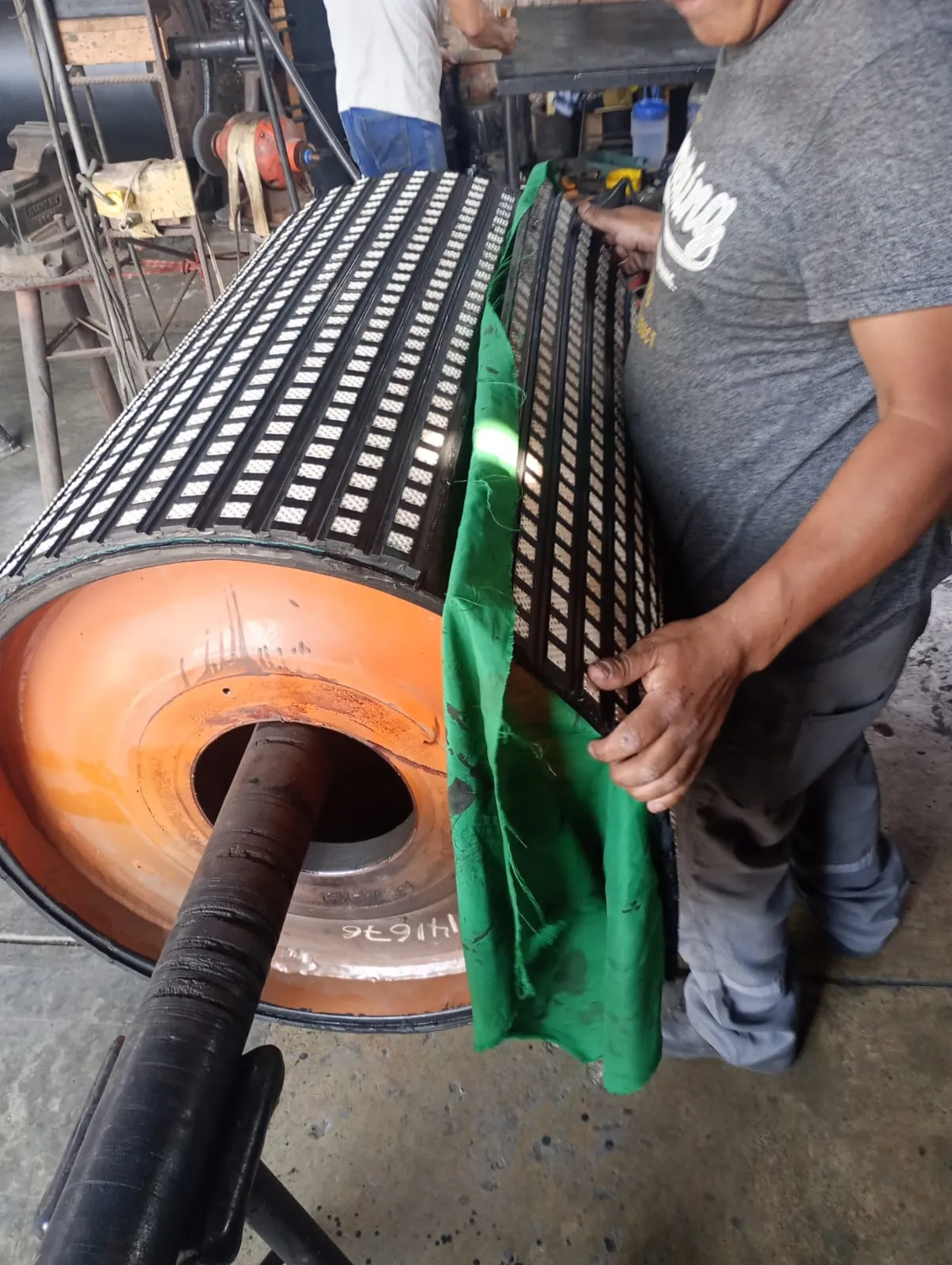

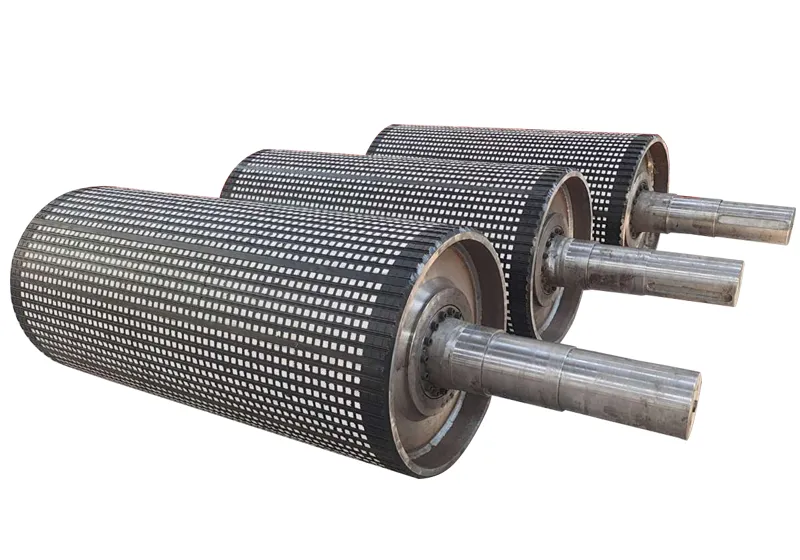

Ceramic lagging in customers'conveyor pulley workshop
